Excavators

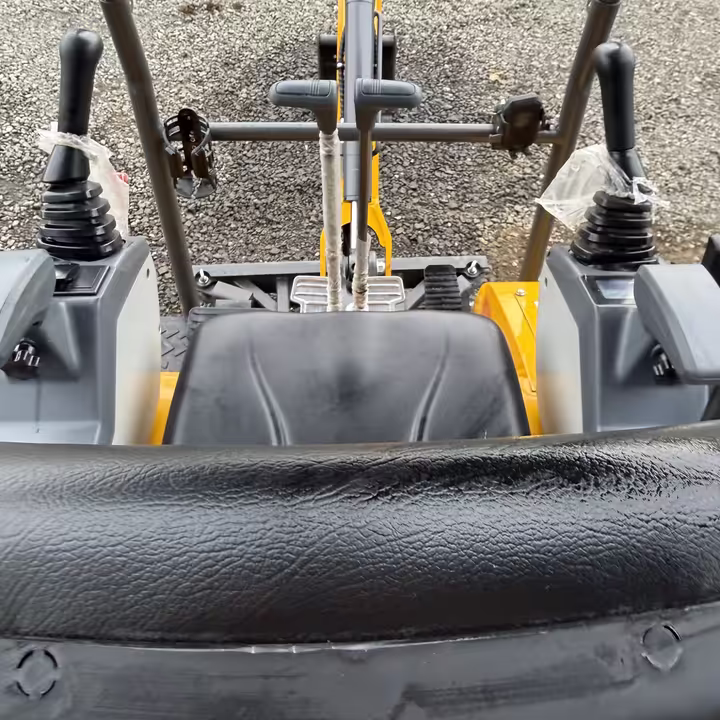

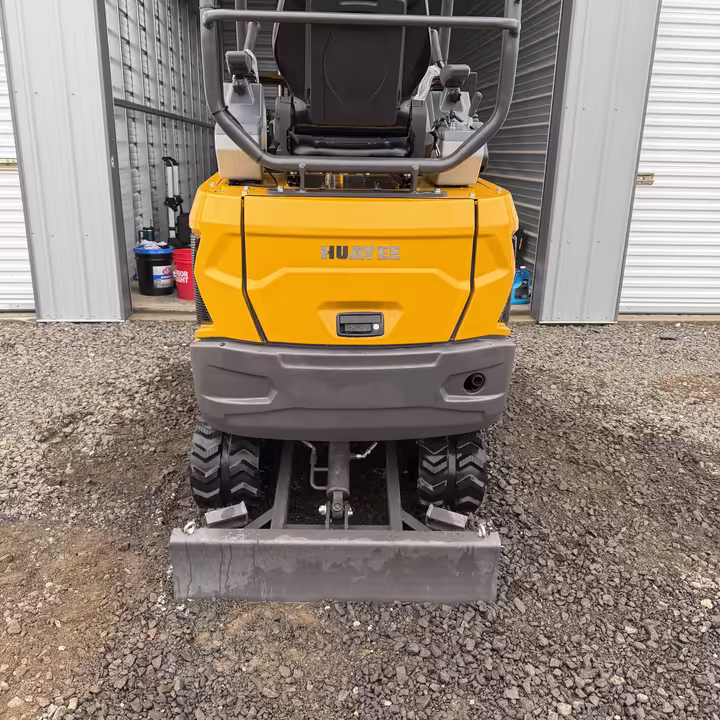

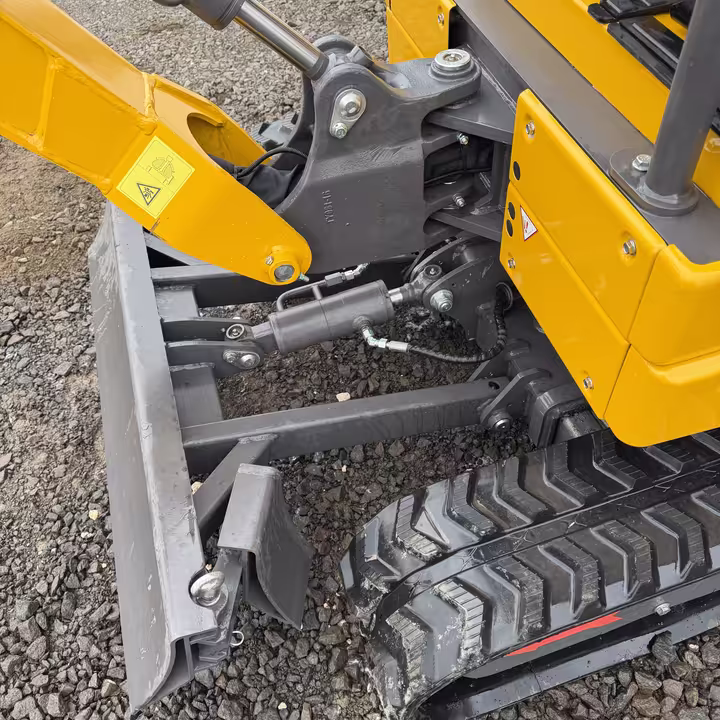

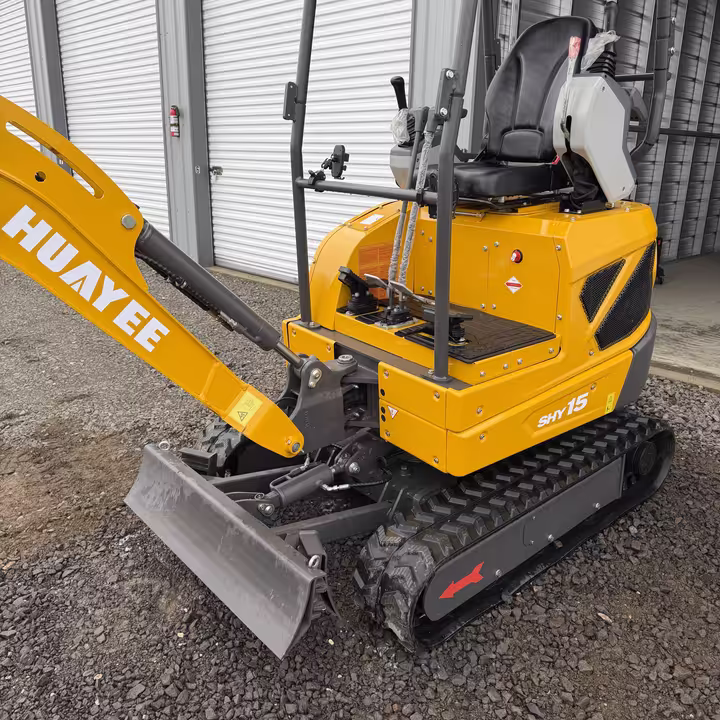

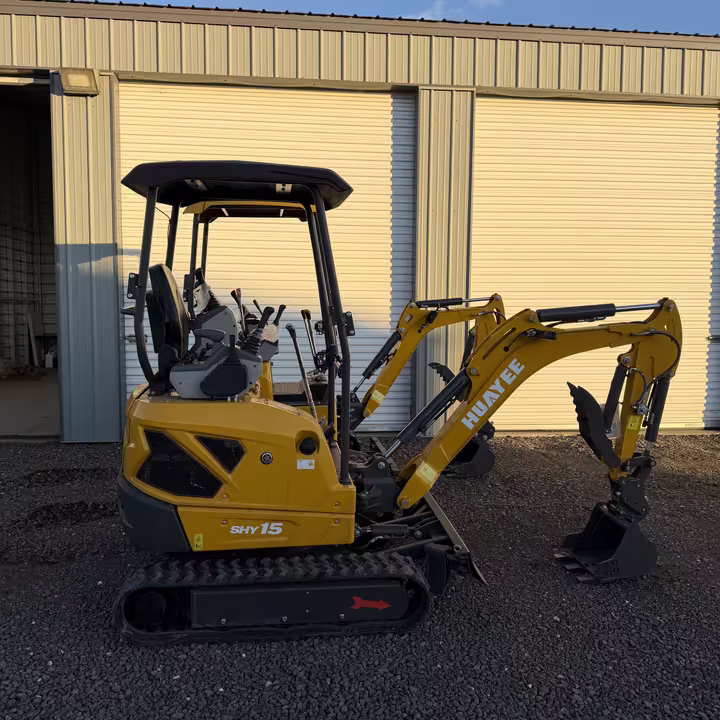

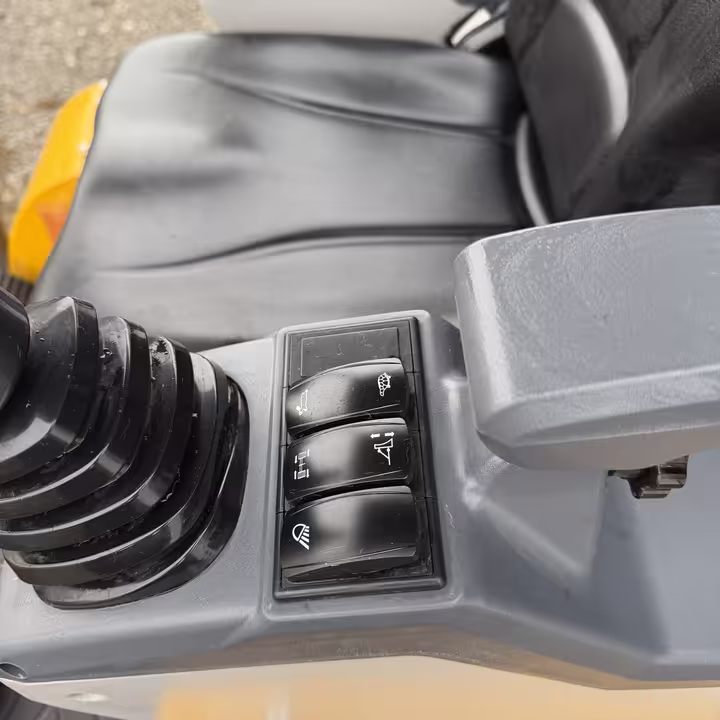

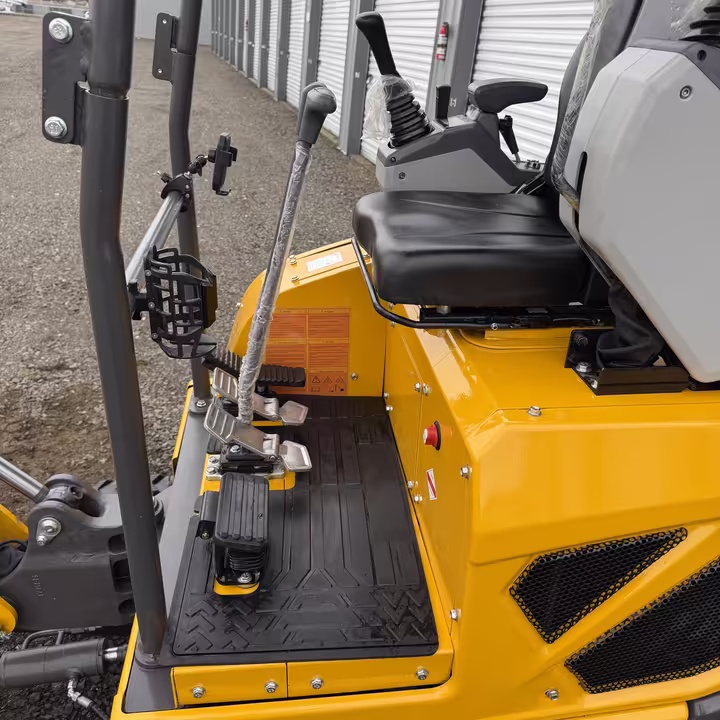

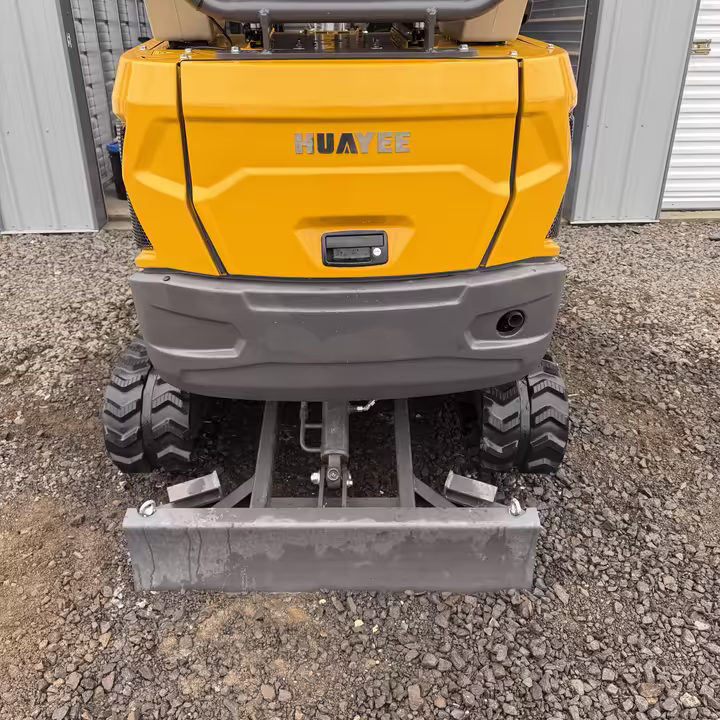

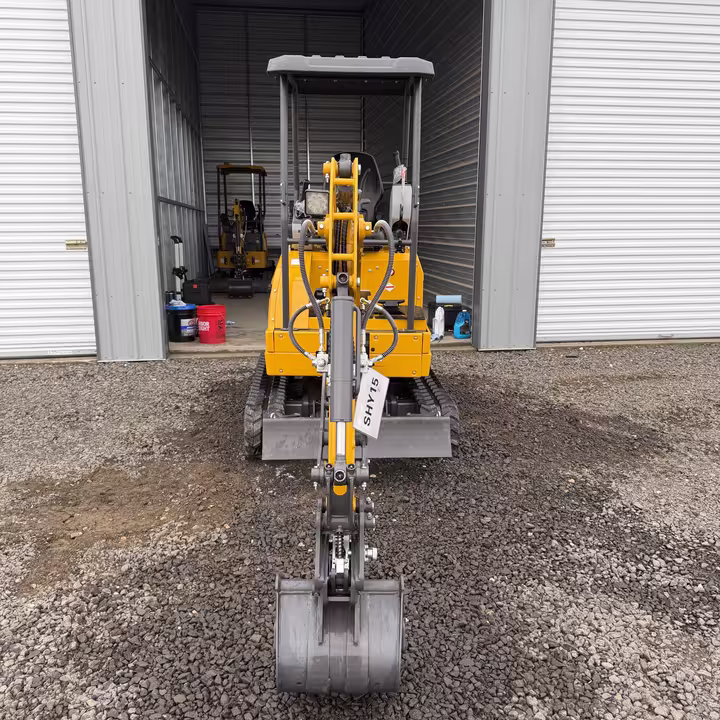

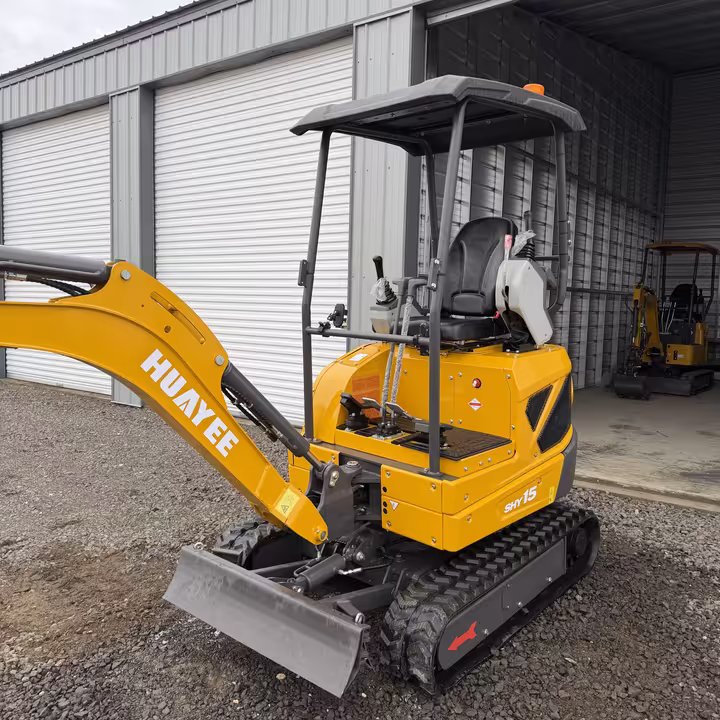

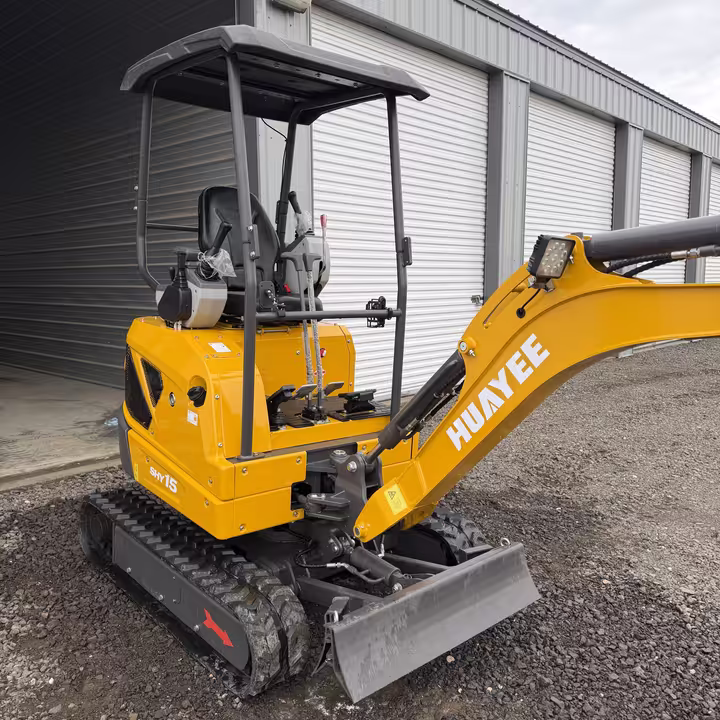

SHY 15

$17,999

Key Features & Benefits Compact & maneuverable — Designed to access narrow corridors, backyards, orchards, and other restricted-space environments without sacrificing performance. Durable construction — Heavy-duty components and steel fabrication built to absorb the wear and tear of daily job-site use. Hydraulic system optimized for attachments — Swap on buckets, rippers, grapples, augers and more to make the machine truly multi-purpose. Operator-friendly design — Clear visibility, intuitive controls, and easily accessed service points reduce downtime and boost productivity. Versatile application range — Ideal for landscaping, utility trenching, land clearing, site preparation, and small-construction jobs. Technical Specs Basic Information Operating Weight: 1,500 kg (3,307 lbs) Bucket Capacity: 0.02 m³ Type of Working: Backhoe Engine Engine Brand: Kubota Engine Model: D722 Displacement: 722 cc Rated Power: 14 HP Maximum Torque: 42.9 N·m @ 2,000 RPM Speed & Operation Maximum Traveling Speed: 1.3 km/h Maximum Grade Ability: 30° Track System Track Material: Rubber Track Length: 1,470 mm (58 in) Track Width: 230 mm (9 in) Fuel & Hydraulic System Hydraulic Oil Flow: 20 L/min (+8 L/min auxiliary) Hydraulic Oil Tank Capacity: 21 L (5.5 gal) Fuel Tank Capacity: 11 L (2.9 gal) Engine Oil Capacity: 3.2 L (0.8 gal) Performance Maximum Ground Digging Radius: 3,410 mm (134 in) Maximum Digging Radius: 3,470 mm (136 in) Maximum Digging Height: 3,010 mm (118 in) Maximum Dump Height: 2,135 mm (84 in) Maximum Vertical Digging Depth: 2,085 mm (82 in) Minimum Slewing Radius: 1,505 mm (59 in) Maximum Dozer Blade Height: 150 mm (5 in) Maximum Dozer Blade Depth: 290 mm (11 in) Dimensions Overall Dimensions (L × W × H): 2,200 mm × 1,100 mm × 2,220 mm
